Installing Docker on Linux and Windows Operating System

Installing Docker on Linux

---

To start the installation of Docker, we are going to use an Ubuntu instance. You can use Oracle Virtual Box to setup a virtual Linux instance, in case you don’t have it already.

The following screenshot shows a simple Ubuntu server which has been installed on Oracle Virtual Box. There is an OS user named demo which has been defined on the system having entire root access to the sever.

To install Docker, we need to follow the steps given below.

Step 1 − Before installing Docker, you first have to ensure that you have the right Linux kernel version running. Docker is only designed to run on Linux kernel version 3.8 and higher. We can do this by running the following command.

uname

This method returns the system information about the Linux system.

Syntax

uname -a

Options

a − This is used to ensure that the system information is returned.

Return Value

This method returns the following information on the Linux system −

• kernel name
• node name
• kernel release
• kernel version
• machine
• processor
• hardware platform
• operating system

Example

uname -a

Output

When we run above command, we will get the following result −

From the output, we can see that the Linux kernel version is 4.2.0-27 which is higher than version 3.8, so we are good to go.

Step 2 − You need to update the OS with the latest packages, which can be done via the following command −

apt-get

This method installs packages from the Internet on to the Linux system.

Syntax

sudo apt-get update

Options

• sudo − The sudo command is used to ensure that the command runs with root access.

• update − The update option is used ensure that all packages are updated on the Linux system.

Return Value

None

Example

sudo apt-get update

Output

When we run the above command, we will get the following result −

This command will connect to the internet and download the latest system packages for Ubuntu.

Step 3 − The next step is to install the necessary certificates that will be required to work with the Docker site later on to download the necessary Docker packages. It can be done with the following command.

sudo apt-get install apt-transport-https ca-certificates



Step 4 − The next step is to add the new GPG key. This key is required to ensure that all data is encrypted when downloading the necessary packages for Docker.

The following command will download the key with the ID 58118E89F3A912897C070ADBF76221572C52609D from the keyserver hkp://ha.pool.sks-keyservers.net:80 and adds it to the adv keychain. Please note that this particular key is required to download the necessary Docker packages.

Step 5 − Next, depending on the version of Ubuntu you have, you will need to add the relevant site to the docker.list for the apt package manager, so that it will be able to detect the Docker packages from the Docker site and download them accordingly.

• Precise 12.04 (LTS) ─ deb https://apt.dockerproject.org/repoubuntu-precise main

• Trusty 14.04 (LTS) ─ deb https://apt.dockerproject.org/repo/ ubuntu-trusty main

• Wily 15.10 ─ deb https://apt.dockerproject.org/repo ubuntu-wily main

• Xenial 16.04 (LTS) - https://apt.dockerproject.org/repo ubuntu-xenial main

Since our OS is Ubuntu 14.04, we will use the Repository name as “deb https://apt.dockerproject.org/repoubuntu-trusty main”.

And then, we will need to add this repository to the docker.list as mentioned above.

echo "deb https://apt.dockerproject.org/repo ubuntu-trusty main” | sudo tee /etc/apt/sources.list.d/docker.list



Step 6 − Next, we issue the apt-get update command to update the packages on the Ubuntu system.

Step 7 − If you want to verify that the package manager is pointing to the right repository, you can do it by issuing the apt-cache command

apt-cache policy docker-engine

In the output, you will get the link to https://apt.dockerproject.org/repo/

Step 8 − Issue the apt-get update command to ensure all the packages on the local system are up to date.

Step 9 − For Ubuntu Trusty, Wily, and Xenial, we have to install the linux-image-extra-* kernel packages, which allows one to use the aufs storage driver. This driver is used by the newer versions of Docker.

It can be done by using the following command.

sudo apt-get install linux-image-extra-$(uname -r) linux-image-extra-virtual



Step 10 − The final step is to install Docker and we can do this with the following command −

sudo apt-get install –y docker-engine

Here, apt-get uses the install option to download the Docker-engine image from the Docker website and get Docker installed.

The Docker-engine is the official package from the Docker Corporation for Ubuntu-based systems.

In the next section, we will see how to check for the version of Docker that was installed.

Docker Version

To see the version of Docker running, you can issue the following command −

Syntax

docker version

Options

• version − It is used to ensure the Docker command returns the Docker version installed.

Return Value

The output will provide the various details of the Docker version installed on the system.

Example

sudo docker version



Output

When we run the above program, we will get the following result −

Docker Info

To see more information on the Docker running on the system, you can issue the following command −

Syntax

docker info

Options

• info − It is used to ensure that the Docker command returns the detailed information on the Docker service installed.

Return Value

The output will provide the various details of the Docker installed on the system such as −

• Number of containers
• Number of images
• The storage driver used by Docker
• The root directory used by Docker
• The execution driver used by Docker

Example

sudo docker info

Output

When we run the above command, we will get the following result −

Docker for Windows

Docker has out-of-the-box support for Windows, but you need to have the following configuration in order to install Docker for Windows.

System Requirements

Windows OS	Windows 10 64 bit
Memory	2 GB RAM (recommended)

You can download Docker for Windows from − https://docs.docker.com/docker-for-windows/

Docker ToolBox

Docker ToolBox has been designed for older versions of Windows, such as Windows 8.1 and Windows 7. You need to have the following configuration in order to install Docker for Windows.

System Requirements

Windows OS	Windows 7 , 8, 8.1
Memory	2 GB RAM (recommended)
Virtualization	This should be enabled.

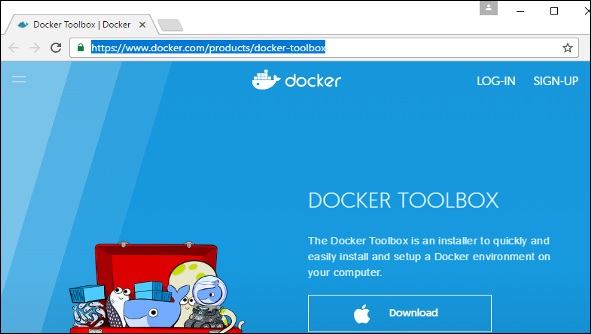

You can download Docker ToolBox from − https://www.docker.com/products/docker-toolbox

Once the installer has been downloaded, double-click it to start the installer and then follow the steps given below.

Step 1 − Click on the Agreement terms and then the Install button to proceed ahead with the installation.

Step 2 − Once complete, click the Finish button to complete the installation.

Docker ToolBox

Once the installer has been downloaded, double-click it to start the installer and then follow the steps given below.

Step 1 − Click the Next button on the start screen.

Step 2 − Keep the default location on the next screen and click the Next button.

Step 3 − Keep the default components and click the Next button to proceed.

Step 4 − Keep the Additional Tasks as they are and then click the Next button.

Step 5 − On the final screen, click the Install button.

Working with Docker Toolbox

Let’s now look at how Docker Toolbox can be used to work with Docker containers on Windows. The first step is to launch the Docker Toolbox application for which the shortcut is created on the desktop when the installation of Docker toolbox is carried out.

Next, you will see the configuration being carried out when Docker toolbox is launched.

Once done, you will see Docker configured and launched. You will get an interactive shell for Docker.

To test that Docker runs properly, we can use the Docker run command to download and run a simple HelloWorld Docker container.

The working of the Docker run command is given below −

docker run

This command is used to run a command in a Docker container.

Syntax

docker run image

Options

• Image − This is the name of the image which is used to run the container.

Return Value

The output will run the command in the desired container.

Example

sudo docker run hello-world



This command will download the hello-world image, if it is not already present, and run the hello-world as a container.

Output

When we run the above command, we will get the following result −
